Pedal Applications

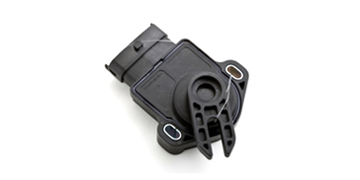

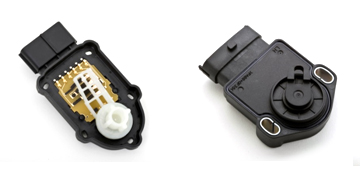

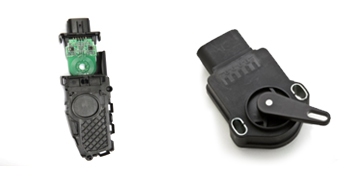

APS : Accelerator Pedal Sensor

Specifications

Contact Temperature : -40℃ ~ +120℃ Angle Range : 90˚

Non-Contact (Inductive Type) Temperature : -40℃ ~ +125℃ Angle Range : 120˚ Accuracy / Linearity : ±1% Output : Analog, PWM, Switch

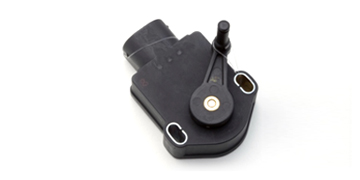

BPS : Brake Pedal Sensor

Specifications

Contact Temperature : -40℃ ~ +120℃ Angle Range : 70˚

Non-Contact (Hall Type) Temperature : -40℃ ~ +85℃ Angle Range : 80˚ Accuracy / Linearity : ±1% Output : Analog, Switch

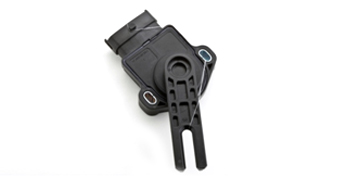

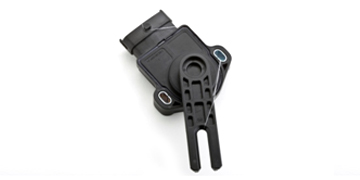

CPS : Clutch Pedal Sensor

Specifications

Contact Temperature : -40℃ ~ +120℃ Angle Range : 70˚

Non-Contact (Inductive Type) Temperature : -40℃ ~ +125℃ Angle Range : 120˚ Accuracy / Linearity : ±1% Output : Analog, PWM, Switch

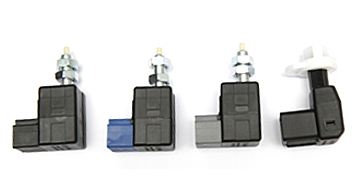

SLS : Stop Lamp Switch (Brake Pedal Sensor)

Non-Contact Switch Operating distance : 5mm ± 0.5mm(10%) Temperature Stable : -40℃ ~ +85℃
